Volkswagen Crafter wheel bolt & nut sizes

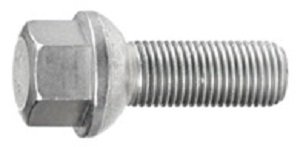

The Volkswagen Crafter (2006 on) uses M14x1.5 wheel fixings with a R14 radius seat and a 19mm hex. It has 6 per wheel, so a full set is 24. Check the table below for the exact fixing for your year and wheel type.
Last updated 2 October 2026
Thread
M14x1.5
Seat
R14 radius
Hex size
19mm hex
Strength
Class 10.9
Sizes by year and wheel type
| Image | Model code | Wheel type | Thread | Length | Seat | Hex size | Finish | Strength |
|---|---|---|---|---|---|---|---|---|
| 2006 on 6 per wheel | ||||||||
| 30/35 (2EC1, 2FJ1) | Steel Wheels | M14x1.5 | 34mm | R14 radius | 19mm hex | ZincNick + Finguard | Class 10.9 |
A dash in the length column means no length is listed for that fixing. Not sure which wheels you have? Steel wheels usually have a plastic trim cover over them.
Locking wheel keys for the Volkswagen Crafter
Lost or damaged your locking wheel key? Find a replacement for your Volkswagen.
Common questions
What size are Volkswagen Crafter wheel bolts?
Volkswagen Crafter wheel fixings are M14x1.5 with a R14 radius seat and a 19mm hex.
How many wheel bolts does a Volkswagen Crafter need?
6 per wheel, so 24 for a full set of four wheels.
