Range Rover Range Rover MK 3 wheel bolt & nut sizes
The Range Rover Range Rover MK 3 (2003–2012) uses M14x1.50 or M14x1.5 wheel fixings with a flat seat and a 22mm hex, depending on year and wheel type. It has 5 per wheel, so a full set is 20. Check the table below for the exact fixing for your year and wheel type.
Last updated 2 October 2026
Thread
M14x1.50 / M14x1.5
Seat
flat
Hex size
22mm hex
Strength
Class 8 (20mm dia Shank) / Class 8 (22mm Shank Dia)
Sizes by year and wheel type
| Image | Model code | Wheel type | Thread | Length | Seat | Hex size | Finish | Strength |
|---|---|---|---|---|---|---|---|---|
| 2003–2005 5 per wheel | ||||||||

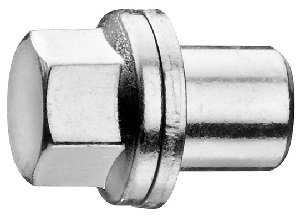

| L322 | Alloy Wheels | M14x1.50 | – | Flat | 22mm hex | Zinc | Class 8 (20mm dia Shank) |
| 2005–2012 5 per wheel | ||||||||

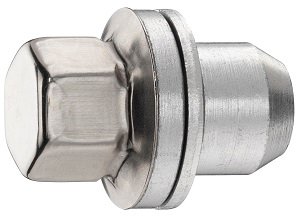

| L322 | Alloy Wheels | M14x1.5 | – | Flat | 22mm hex | Chrome | Class 8 (22mm Shank Dia) |
A dash in the length column means no length is listed for that fixing. Not sure which wheels you have? Steel wheels usually have a plastic trim cover over them.
Locking wheel keys for the Range Rover Range Rover MK 3
Lost or damaged your locking wheel key? Find a replacement for your Range Rover.
Common questions
What size are Range Rover Range Rover MK 3 wheel bolts?
Range Rover Range Rover MK 3 wheel fixings are M14x1.50 or M14x1.5 with a flat seat and a 22mm hex, depending on year and wheel type.
How many wheel bolts does a Range Rover Range Rover MK 3 need?
5 per wheel, so 20 for a full set of four wheels.
